Recloser High Voltage Switch Detail with Bus and Feeder Layout

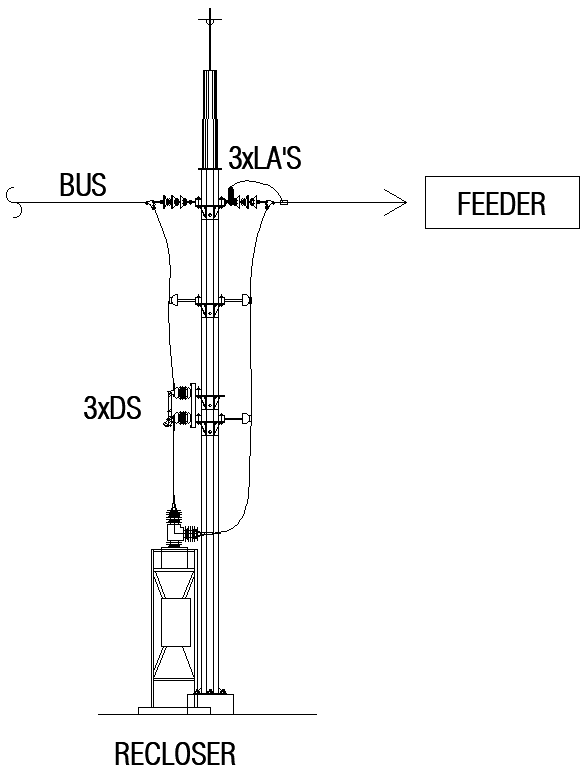

This AutoCAD drawing illustrates a detailed recloser high voltage switch arrangement used in overhead electrical distribution systems. The drawing clearly shows the vertical pole-mounted configuration with a bus connection on one side and a feeder outlet in the opposite direction. Key components such as the recloser unit at the base, three lightning arresters 3xLA mounted above, and three disconnect switches 3xDS aligned along the pole height are properly indicated. The layout highlights conductor routing, equipment spacing, mounting brackets, and alignment of electrical accessories for safe operation. Component positioning is shown with a clear centerline reference and proportional spacing for installation planning. Keywords included recloser switch detail, high voltage switch.

The drawing further supports electrical layout coordination by showing the relationship between the bus bar connection, feeder direction, and protective devices installed along the structure. Equipment fixing levels, vertical stacking order, and cable termination points are defined to assist engineers in understanding installation logic and maintenance access. This recloser high voltage switch detail drawing is suitable for substation interface points, roadside distribution lines, and utility network upgrades. The clean drafting style, standard electrical symbols, and readable annotations make the drawing useful for design verification, tender documentation, and execution reference. Keywords included recloser high voltage switch detail, electrical recloser CAD drawing, and pole-mounted recloser switch layout.
